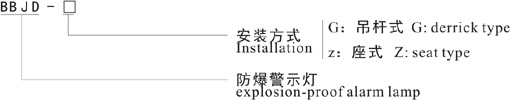

型號含義 Model implication
適用范圍 Applications
1、廣泛用于石油開采、煉油、化工、軍工等危險環境及海洋石油平臺、油輪等危險場所作事故信號警報或作為訊號指示用；
2、適用于防護要求較高、潮濕等場所；
3、適用于爆炸性氣體環境的1區、2區場所；
4、適用于可燃性粉塵環境20區、21區、22區場所；
5、適用于ⅡA、ⅡB、ⅡC類爆炸性氣體環境；
6、適用于T1~T6組溫度組別。
1、widely used in oil extraction, oil refining, chemical, military and other dangerous environment and marine oil levelTable, oil tankers and other dangerous places for accident signal alarm or as a signal indicating;
2、 applicable to the protection requirements higher, humidity etc.;
3、 can be used in zone 1, explosive gas environment in 2 areas;
4、 suitable for combustible dust environment 20 zone, 21 zone, 22 zone location;
5、suitable for A, II B, II C explosive gas environment;
6、 suitable for group T1~T6 temperature group.

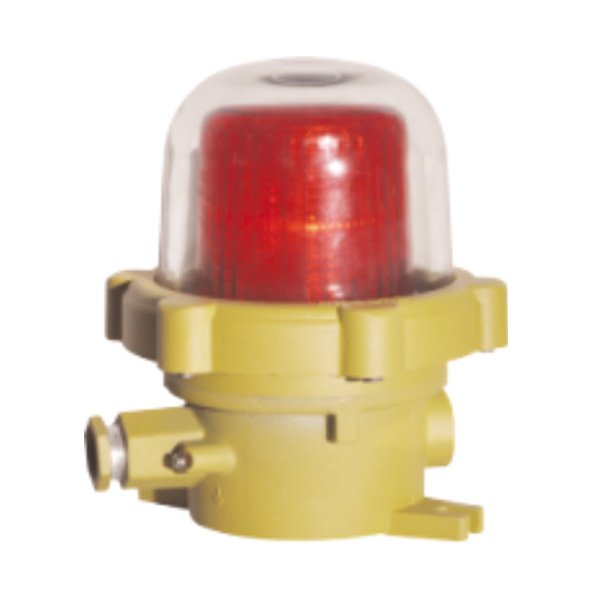

產品特點 Features
1、鋁合金壓鑄殼體，表面高壓靜電噴塑；
2、鋼化玻璃燈罩，具有較強抗沖擊能力；
3、高防腐性能的不銹鋼外露緊固件；
4、內裝燈罩有紅、黃、藍等多種顏色可供選擇；
5、配置LED光源，高亮度、長壽命工作；
6、鋼管或電纜布線均可。
1、 aluminum alloy die-casting body, with high-pressure electrostatic plastic-sprayed surface;
2、 the lampshade is made of toughened glass, has strong impact resistance ability;Stainless steel exposed fasteners
3、high corrosion resistance;
4、 inside cover a variety of colors red, yellow, blue and other alternative;
5、 configuration of the LED light source, high brightness, long life work;
6、 steel pipe or cable wiring.
主要技術參數 Main technical parameters
執行標準：GB3836.1、GB3836.2、IEC60079-0、IEC60079-1、IEC60079-0、EN60079-1
防爆標志：ExdⅡCT6
額定電壓：AC220V 50Hz(如有特殊要求請注明)
閃光次數：150次/min
光源：LED光源
防護等級：IP65
防腐等級：WF1 *WF2
引入裝置：G3/4"引入口規格，適合φ10mm~φ14mm電纜
接線端子：≤2.5mm2導線可靠連接
安裝方式：吊桿式、座式
Executive standard: GB3836.1, GB3836.2, IEC60079-0, IEC60079-1,IEC60079-0, EN60079-1
Explosion-proof mark: Exd Ⅱ Ct6
Rated voltage: AC220V 50Hz (if you have special requirements please specify)
Flash: 150 times /min
Source: LED light source
Protection grade: Ip65
Protection grade: WF1 *Wf2
Introduction device: G3/4 "into the mouth, specifications, suitable for φ 10mm~ φ 14mm
cabTerminal: ≤ 2.5mm2 wire reliable connectionInstallation: derrick (g), a type (z)
外形及安裝尺寸 Outlines ＆ installation dimensions
訂貨須知 Order note
◆按照產品型號說明逐條選擇并注明防爆標志，例如：需要座式防爆警示燈，則產品選型為BBJD-z ExdⅡCT6；
◆吊桿式出廠時，只配直桿G3/4"(300mm)，若需防爆接線盒，防爆活接頭等配件，請另外注明。
◆ according to the product model and indicate that headed choice explosion-proof mark, For example: the need for seat type explosion-proof warning lamp, the product selection for the BBJD-z Exd II Ct6;
◆ derrick factory, only with the straight rod G3/4 "(300mm), for the explosion-proof junction box, explosion-proof Union and other accessories, please specify.
